BSK_OpNav

Overview

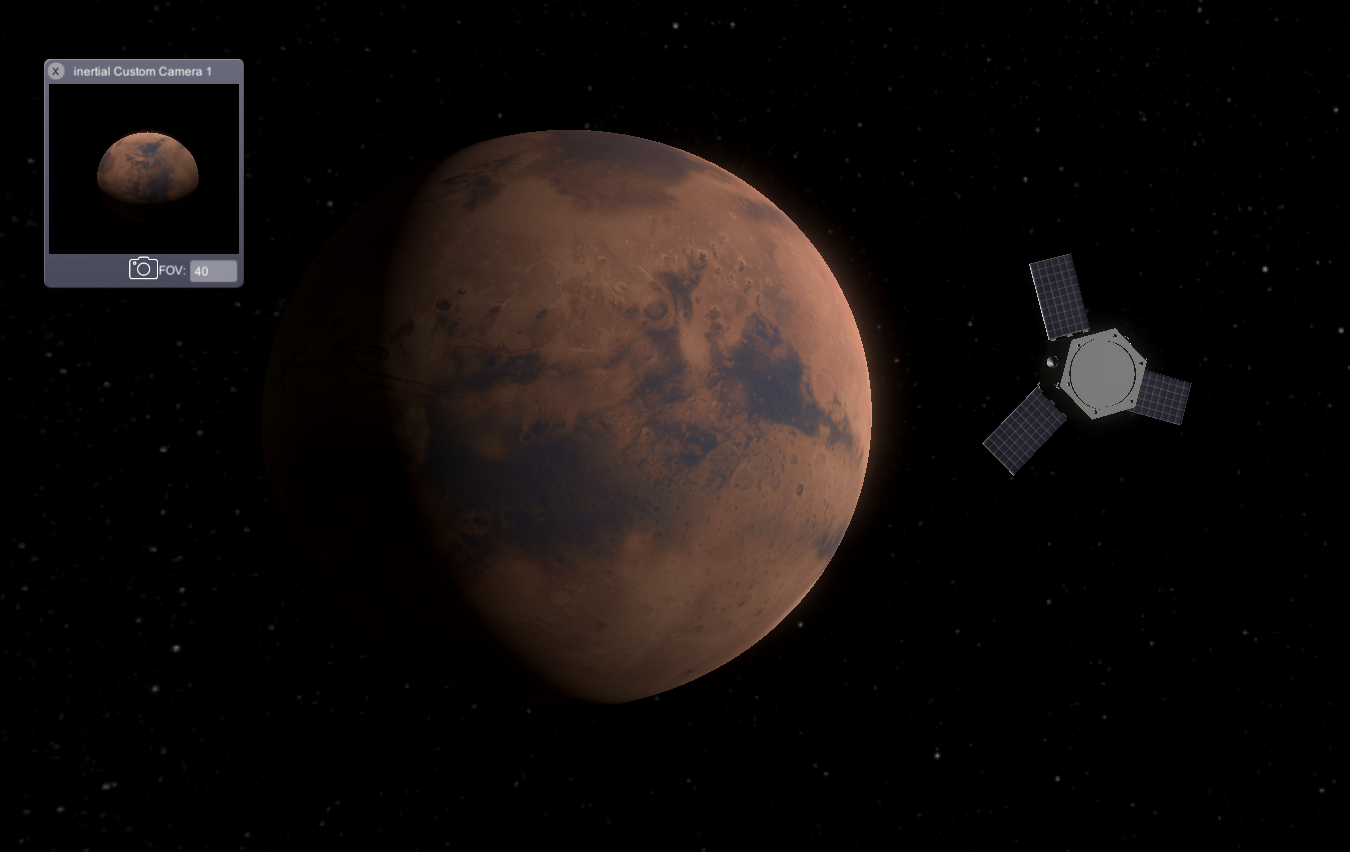

The goal of the OpNav Scenarios is to simulate Optical Navigation methods and performance in Basilisk. All of the scenarios provided in basilisk/examples/OpNavScenarios put a spacecraft on orbit about Mars. By extracting limbs are circles from the images, the spacecraft can point to the planet, and estimate it’s position.

../../_images/OpNavScenario.png

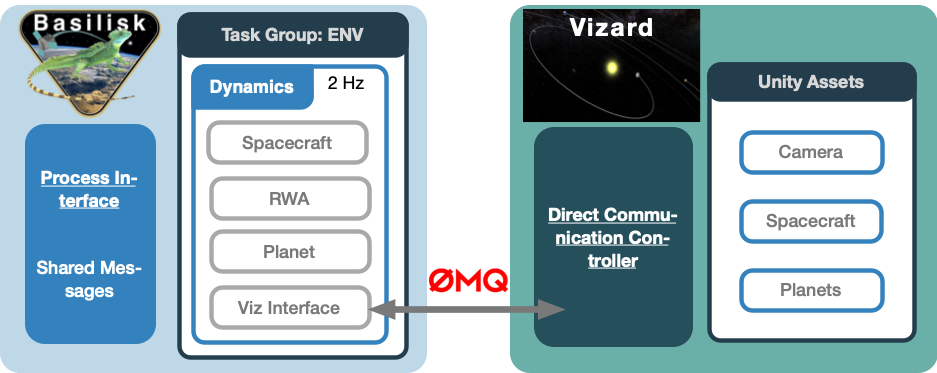

This Basilisk Simulation, which inherits SimulationBaseClass, provides the backbone for all the OpNav simulations provided in basilisk/examples/OpNavScenarios. These simulations spawn the Basilisk Vizard visualization in order to provide images for processing. These images are handled by the vizInterface module found in src/simulation/vizInterface. A figure illustrating the architecture is found here:

../../_images/OpNavInterfaceOverview.png

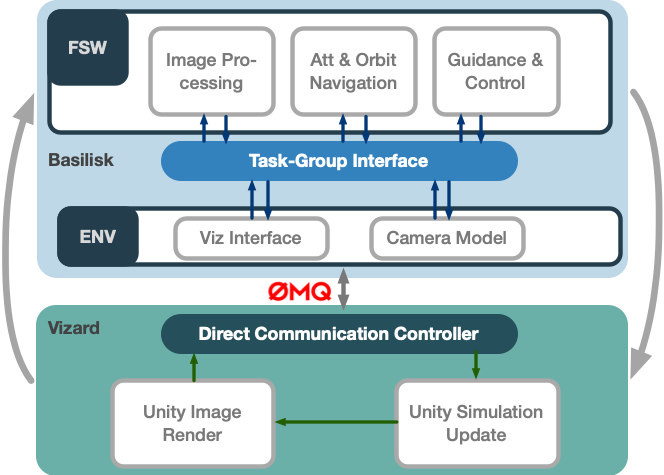

More details on the software interaction can be found in Chapter 2 of Thibaud Teil’s PhD thesis. Sequentially, Basilisk modules then receive the images in order to process and navigate using them. This is illustrated in more detail:

../../_images/OpNav_Details.png

Running OpNav Simulations

Important

Make sure Basilisk is built to include the OpNav modules by using --opNav True when running conanfile.py. This is not turned on by default as it will install the large OpenCL library.

In order to call Vizard from python simulations, the path to the downloaded Vizard app must be properly set. If needed, adjust the following line illustrated below to reflect the path to the Vizard binary:

# TODO : Modify the path to the viz here
appPath = '/Applications/Vizard.app/Contents/MacOS/Vizard' #If on Mac

The Vizard app must therefore me downloaded, and this path must reflect it’s position in the file structure, and its name. If the path is not properly set, the OpNav simulations will hang (printing that it is waiting for the Vizard connection). Another option is to manually open the Vizard application after having started the python scenario, check OpNav or Direct Comm, and provide the tcp/ip address printed by the scenario.

The scripts are tested if all modules are installed, but can be run at full length by calling:

python3 scenario_OpNavAttOD.py

See the Scene Rendering

By default the Vizard will run in head-less mode where the full scene is note rendered for viewing as this slows down the simulation. To see the scene, edit the following line within the scenario script:

TheBSKSim.get_DynModel().vizInterface.opNavMode = 1

to set opNaveMode flag to 1 instead of 2. This launches Vizard with the argument -directComm rather than with -noDisplay and the user can monitor the scene being rendered.

OpNav Dynamics, Flight Software, and Plotting

The simulations use three other main python scripts.

BSK_OpNavDynamics is similar to the BSKSim versions seen previously. The main additions are the instantiation of Module: vizInterface, and the camera module.

BSK_OpNavFsw contains the FSW algorithms used in the scenarios. Examples are the Orbit Determination filters, the pointing guidance module, the CNN module, and more. This file also contains the modeRequest definitions which enable all the tasks necessary to perform a specific action.

OpNav_Plotting contains the plotting routines. None of the files are saved, but are shown when the scenario is run with python. Saving is left to the user’s discretion.

class BSK_OpNav.BSKSim(fswRate=0.1, dynRate=0.1)[source]

Bases: Basilisk.utilities.SimulationBaseClass.SimBaseClass

BSK Simulation base class for opNav scenarios
